Best Methods To Pick The Proper Plastic Sheet Materials

Best Methods To Pick The Proper Plastic Sheet Materials

by | Sep 8, 2015 | Choosing A Plastic Material, Educational Post, Informational Post, Mentor Nuggets

Best Tools To Assist In Your Plastic Sheet Search

Use the best available tools to narrow down the best plastic sheet material for your application.

What are the best methods to pick the proper plastic sheet material?
Use the tools that the professionals use to find the best plastic material for your application.

Where To Begin

The process of picking the proper plastic material starts with determining the ‘must have’ physical properties needed for your application. Designing a part with the minimum performance factors in mind will help to eliminate an overly
expensive part.

Critical factors to consider are:

  • Temperature requirements (short term and long term)
  • Chemical or Environmental Requirements
  • UV resistance (Will it be in direct sunlight)
  • Color or Transparency
  • Strengths (Impact and Compression)
  • Compliance Issues (Certification for FDA, NSF, Dairy, etc.)

Review The Plastic Property Comparison Guide

The first tool suggested is a chart produced by the IAPD (International Association of Plastic Distribution – https://iapd.org/) linked in picture below, and listed on this chart are the most common plastic sheet and plastic rod materials that are commonly available. In addition, the chart compares the physical properties of these common plastic materials. Click on picture to access chart.IAPD Plastic Selection Rectangle Chart
Included in this chart is a relative cost comparison, which will assist in limiting the materials to proper plastics for a application without over-designing and using an expensive ‘over kill’ material. Some common plastic sheet materials can be very expensive. Materials like PEEK (PolyEtherEtherKetone) can be in the $100 per pound range or more.

Start Search With Temperature Resistance

After looking over the IAPD (International Association of Plastic Distribution) Physical Properties Chart above, now it is time to evaluate specifics for your application. The critical factors listed above are ranked by most important to least important. If your part needs to handle a continuous temperature of 300 degrees F, this is a critical physical property. Picking a material that softens at 250 degrees is a
recipe for disaster. Pick a material that can handle the temperature first.

Will Part Have Chemical Exposure

Next, look at environmental requirements. Parts exposed to chemicals are important to research. Find the chemical make up and the concentration of the chemical to insure the material you pick can handle this solution. Many plastics have excellent chemical resistance as evidenced by evaluating the container the chemicals are stored in already. A common plastic that is chemical resistant is Polypropylene, the same material used for automotive batteries. While Polypropylene and HDPE sheets are excellent in chemical resistance, their temperature range is quite limited. Also, these two plastics can not be easily bonded or glued, and would require heat welding for assembly.

Does Your Part Live In The Sun

Most plastics do not handle long exposure to direct sunlight without an additional UV additive. The one exception is Acrylic, which is the most UV resistant plastic sheet available. Some plastics handle UV well if they have a carbon black additive, or a extra UV package added at time of production.

How Critical Is The Color

The most common colors in many plastic sheets are Natural (white to tan) and Black. While other colors are available with a special run, this may require a large minimum order. Some plastics, like HDPE are available in many colors and textures for use in marine, playground and food processing applications. In many plastic applications, a machined part is being made, and the color is the least important factor. If it is an internal part of a machine, no one really cares about the color of the part. Some clients look for materials in a specific color to help ‘brand’ their parts for easy replacement and identification.

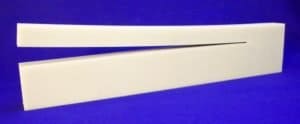

Nylon with huge amount of stress, cooled too quickly

Nylon with huge amount of stress, cooled too quickly.

How Much Stress Will The Part See

Strength is a wide range of physical properties covering many stresses a part may be exposed to. From impact to compression, expansion to tensile strength, all of these can be critical in designing a plastic part. There are other factors in the ‘Strength’ realm, like Notched Izod and water absorption. If your part will be exposed to crushing pressure, pulling apart force or impact, these are critical things to consider prior to picking your plastic part.

PTFE is a soft and slippery plastic, but will ‘cold flow’ under high pressure, and High Pressure Laminates like G-10 FR 4 sheet can withstand some of the highest pressures. The Notched Izod tests for materials that break easily if a scored mark has been made in the surface. Acrylics break very easily if scored, but UHMW will not break at all under the same test.

What Agency Approval May Be Required

In many applications a part may require approval or testing to meet a third party certification. One such common application is for materials in food processing applications. Common requests included UL ratings, Fire Ratings, Military specifications and many more. Food contact is a popular request, covering material that is either FDA (Food and Drug Administration) or NSF (National Sanitation Foundation) approved. These agencies insure that materials are rigorously tested and comply with their requirements for safety. Some common materials used in food processing that meet the FDA certification are Acetal Copolymer – Acetal Homopolymer, HDPE, UHMW and Nylon, plus many others.
Once these steps have been completed, several materials should present themselves as meeting your criteria and physical property requirement. Unfortunately there is no one perfect plastic that works in all applications. However, for almost every application, there is a material that will work, and work better than most other substrates.

Cool Online Tool

There is also an additional tool that can be used to help identify some of these properties quickly, the Gehr Plastic Selector online application.

If you are still in need of assistance in identifying an appropriate plastic material, contact an experienced Plasticologist at Industrial Plastic Supply, Inc. – call 866-832-9315

Also see the article, New Methods To Pick Proper Plastic Sheet Materials, for additional information on this subject.

Which Plastic Sheet or Rod To Use – How Do I Choose The Proper Plastic Materials

Which Plastic Sheet or Rod To Use – How Do I Choose The Proper Plastic Materials

by | May 20, 2013 | Choosing A Plastic Material, Educational Post, High Performance Plastics, Made In The USA, Mentor Nuggets

Which Plastic Sheet or Rod Material is right for me?

Acetal Copolymer Sheet and Rod

Mechanical Acetal Sheet

This not an easy question to answer. Several different factors come into play when choosing the right plastic for your application. Temperature, strength, exposure to the elements and even time spent at elevated temperatures are just a few factors to consider when choosing the right plastic for a particular project or job.

Picking the right plastic for your application is critical for its success and longevity and needed to insure that the material doesn’t fail in critical situations. From the onset it may take a bit of time to choose the right plastic material, but will ultimately pay off in the long run. Simply choosing the cheapest plastic sheet or rod may spell disaster for your project.

Many plastics are resistant to chemical attacks. Some plastics however are not. Two examples of plastic that have low resistance to chemicals are Acetal Copolymer and Nylon. Acetal and Nylon are both a great machining plastics with excellent wear resistance and impact strength. However, when exposed to chlorine or alkaline they tend to become brittle which can cause failure and if used in such instances as plumbing, can lead to major problems such as flooding. Nylon does have good resistance to many chemicals but will degrade when exposed to acids especially sulfuric. A plastic that would work better for applications involving the use of chlorine or acids is UHMW. UHMW has some of the same properties as Acetal such as wear resistance, ease of machining and are both self lubricating. UHMW often is an alternative for Acetal and Nylon, especially when it comes to chemical attacks.

Many plastic sheet and rod materials to choose from

Another plastic that can fail if used in the wrong application is Acrylic. Acrylic is a great plastic for displays and decorative purposes and is a natural replacement for window glass. However, it is brittle and has very low impact strength as opposed to Polycarbonate. Polycarbonate is a great plastic for impact strength, probably the best in the plastic family. It is 25 times stronger than

Large selection of Performance Plastic Sheet and Rod

Massive Selection of Performance Plastic Rod

Acrylic and this makes it ideal for bullet resistant glass and riot shields, while Acrylic would be useless for those critical jobs. However, Acrylic has better U.V. resistance than Polycarbonate Plastic Sheet which makes it better for use outdoors over longer periods of time because it is invisible to sunlight. Another plastic that cannot handle U.V. rays is Polypropylene. Polypropylene unlike Acetal has excellent chemical and moisture resistance. However, unlike Acrylic, it becomes brittle in sunlight and starts to craze or crack when exposed over a period of time while Acrylic would last many years longer. Even though Polypropylene is a very rigid and stiff material, with good impact and crack resistance, if exposed to the elements for a period of time, it will not retain its properties and a chemical chain reaction will cause the material to eventually fail. Polypropylene is great at handling chemicals and food applications which neither Acrylic nor Polycarbonate Sheet are well suited because for this application, because they don’t have good chemical resistance and the standard grades are not approved for handling food.

So many Plastic Sheet and Rod Choices

Because there are so many options, we invite you to do further research. One are would be the blog post ‘Pick The Proper Plastic Material‘, or even use the online tool ‘Gehr Plastic Selection Tool‘. There are over 60 standard plastic sheet materials that we stock, with many additional material that are available from our factories, contact us for help with your application.

These are just some examples of the differences between plastic resins and it is important to note that just because one plastic works for one application, it may not work for another. All factors must be considered and taken into account, maybe even some trial and error. This will insure that your project will go smoothly and will be able to last through many years of use, saving time, money and patience.

Contact us for more examples of materials and the differences between specific items. Also, we have a great tool to help you in choosing the proper plastic material for your application, check out our free Plastic Material Selector Guide. We would also welcome your email inquiries or call us at: 866-832-9315.

Topic: Choosing the proper plastic sheet or rod
