PVDF – Polyvinylidene Fluoride – Kynar®

black-plastic-sheet

PVDF – Polyvinylidene Fluoride – Kynar®

Kynar® 740 and HD1000 have excellent chemical resistance


PVDF – Arkema Kynar®

This extremely chemical resistant material is used in high purity fluid handling systems and parts.

PVDF material has excellent abrasion resistance, nuclear radiation resistance, and unsurpassed chemical resistance.

Used extensively in applications for extremely low moisture absorption and resistance to virtually all chemicals and solvents.

The most popular trade name is Kynar® and Kynar® 740 – made by Arkema®. The material is also available as: HD1000, Ensikem®, Tecaflon®, Mechatec® PVDF, Polystone® PVDF, Unitar®, Sustatec®, Kytec®, Symalit®, Foraflon®, Solef®, Trovidur®, and others.

PVDF materials are FM-4910 rated materials, with excellent heat and flame resistance.

Why you should use PVDF – Kynar® brand:

This material has excellent abrasion and exceptional chemical resistance. Has high dielectric strength and very good mechanical strength.

  • Excellent corrosion & chemical resistance at ambient and elevated temperatures
  • Chemically inert and extremely high purity
  • 300 degrees F continuous use temperature
  • Low permeability to gases and liquids
  • Excellent balance of strength, toughness and abrasion resistance
  • FDA, USDA, 3A, FM4910 and USP VI compliant
  • Offers excellent strength, rigidity and machinability
  • PVDF is ITAR compliant, and PVDF is RoHS compliant

Frequently used in:

  • High Purity Fluid Processing Systems
  • Fluid sensors, manifolds and valves
  • Chemical processing and storage parts
  • Liquid chromatography components
  • Bearings and bushings
  • DI water systems

Materials available as:

Sheet:
.250″ – 4″ in Natural (Ivory – Tan) in 24″ X 48″
Rod:
375″ – 6″ diameter in Natural (Ivory – Tan) up to 120″ lengths (.250″ – 2.50″)

Kynar and PVDF Typical Resin Properties

These properties are for evaluation purposes only. This information is not to be construed as a warranty, guarantee or assurance that you may achieve the same results. Materials made from different resin types, manufacturing techniques and manufacturers will react differently. The information should be used to compare against other materials only, and each user should make his own tests to determine suitability. No warranty as to this materials suitability are either expressed nor implied.

Plastic Sheet and Sheets – Over 80 Materials To Choose From

Plastic Sheet and Sheets – Over 80 Materials To Choose From

Which Plastic Sheet or Plastic Sheets?

A wide variety of plastics are available in sheet form.

The term: ‘Plastic Sheet‘ or ‘Plastic Sheets’ is more of a general statement covering over a hundred types of plastic materials and plastic products. Some of the most popular plastic materials made as a sheet are:

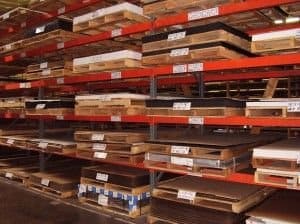

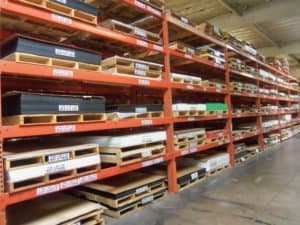

Large inventory of Performance Plastic Sheet ready for shipment

Large Inventory of Performance Plastic Sh

Wide range of plastic materials in sheet

In addition to the wide range of plastic materials available as plastic sheet, most of these materials are also available as: thin gauge or film, strip, plate, block, slab and plastic panels. The thin gauge or film materials are frequently available with or without a pressure sensitive adhesive also called ‘tape’. Sheet in some materials is available over 4.0″ thick and perhaps as thick as 8.0″ thick in a few materials. The standard sheet size on most of our plastic sheets is either 24″ X 48″ or the larger 48″ X 96″ sheet size; although some materials are available as: 48″ X 120″, 60″ X 96″ or 72″ X 96″. Contact us with with questions on your required piece sizes, we are happy to provide plastic sheets cut to size.

While there are lots and lots of different materials available as plastic sheet, there may only be one or two materials that are right for your application. We want to assist with your search. If you need help choosing the proper plastic material for your application, check out our free Plastic Material Selector Guide. Also, feel free to contact us for further assistance. As a leading plastic sheet distributor since 1975, we feel that we are your best choice as your new plastic sheet and sheets supplier. Give us a call at 866-832-9315.
